Industrial X-Ray Computed Tomography System NAOMi-CT | Specifications

Specifications

CT（3D）

$29,500 CT
(Medium Sized Panel)

$39,500 CT
(Large Sized Panel)

$58,000 CT
(Large Sized Panel)

$9,500

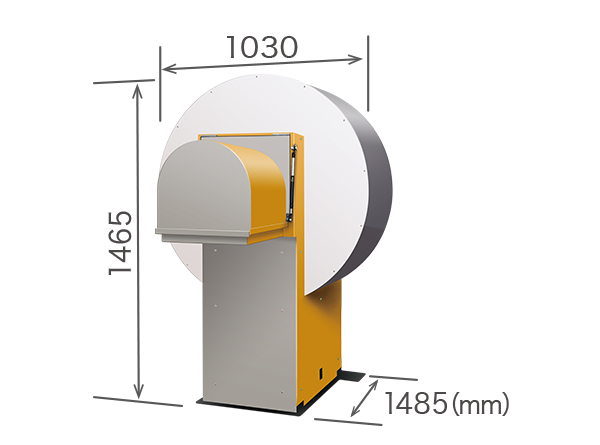

*When closed the door, w/o handle.
Upgradable to $39,500 CT with additional $10,000

*When closed the door, w/o handle.

Ask us for longer/larger scans.
*Pre-order available.

*When closed the door, w/o handle.
Upgradable to CT with price difference.

Types

X-Ray CT Scanner System

2D X-ray Imaging System

Features

3D Scans, 2D Acquisitions, With Void Detecting Software (3D)

2D Acquisitions

Models

NAOMi-CT 3D-M

NAOMi-CT 3D-L

NAOMi-CT 3D-Slide L

NAOMi-2D

Hardware

Weight

Approx. 60 kg (130 lbs)

Approx. 70 kg (155 lbs)

Approx. 100 kg (200 lbs)

Approx. 60 kg (130 lbs)

Power source

Power

AC 100-240 V, 50/60 Hz

Consumption power

1.0 kVA (At peak)

X-ray source *

Tube voltage

50-100 kV

Tube current

2-10 mA

Max power output

500 W

High voltage generator

DC rectifier (Earlier ignition system)

Cooling

Oil and air

Focal spot size

0.5 mm

Detector

Detector Type

FPD

Multi CCD

Pixel size

98μm

76μm

100μm

Grayscales

16 bits

12 bits

Active imaging area

H 121 x W 123 mm

H 263 x W 213 mm

H 106 x W 174 mm

Pixels

1440 x 1440 pixels
(2.0 megapixels)

3792 x 3024 pixels
(11.4 megapixels)

980 x 1660 pixels
(1.6 megapixels)

Image Acquisition

Scan Areas

Partial Scan	φ56 × H37-41mm Pixel Size: 0.080mm
Normal Scan	φ83 × H72-82mm Pixel Size: 0.16mm
Offset Scan	φ151 × H63-82mm Pixel Size: 0.19mm

φ68 × H38-49mm
Pixel Size: 0.095mm

φ146 × H153-185mm
Pixel Size: 0.22mm

φ251 × H130-185mm
Pixel Size: 0.31mm

φ67 × H45-49mm
Pixel Size: 0.087mm

φ141 × H147-176mm
Pixel Size: 0.21mm

φ240 × H127-176mm
Pixel Size: 0.31mm

H106 × W174mm

Scannable Size

φ250 × H230mm

φ300 × H320mm

W-360 × D1000 × H-300mm
*Refer the above drawings.

W250 × D280 × H230mm

Resolutions

3D Scans	5LP/mm 0.1mm
2D Acquisitions	4LP/mm 0.125mm

4LP/mm 0.125mm

3LP/mm 0.166mm

2D Acquisitions

3LP/mm 0.166mm

Load Capacity

Approx. 10 kg (22 lbs)

Approx. 20 kg (44 lbs)

Approx. 10 kg (22 lbs)

Target Examples

Aluminum Diecasts, Resins/Plastic Products and Containers, Rubber Products, Processed Food, Confectionery, Fruits, Cosmetics, Stationery, Toys, Shoes, Living Organisms, Bones, Cultural Properties, etc.
*Ask us for scanning heavy metals (iron, copper, etc.)

Unsuited materials for scans

●With the interlocking function ●Self-protected with the built-in lead housing. ●No qualification or license required (in case of Japan).
In case of the $59,500 CT, the three points above may not be applied.
Specifications or designs may be changed without a prior notice.

About the scan area
and object size.
