Slide CT-V

■ No x-ray room required, it is a CT which can be installed with small space

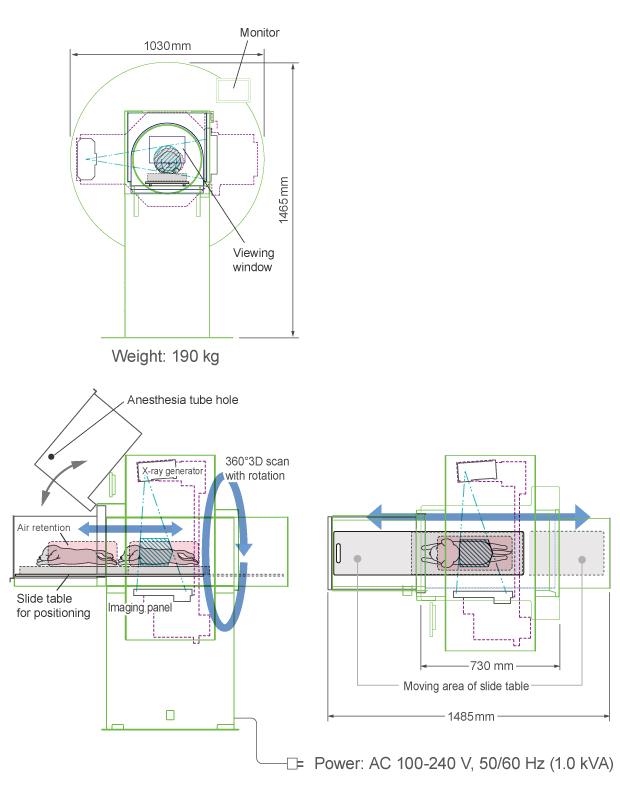

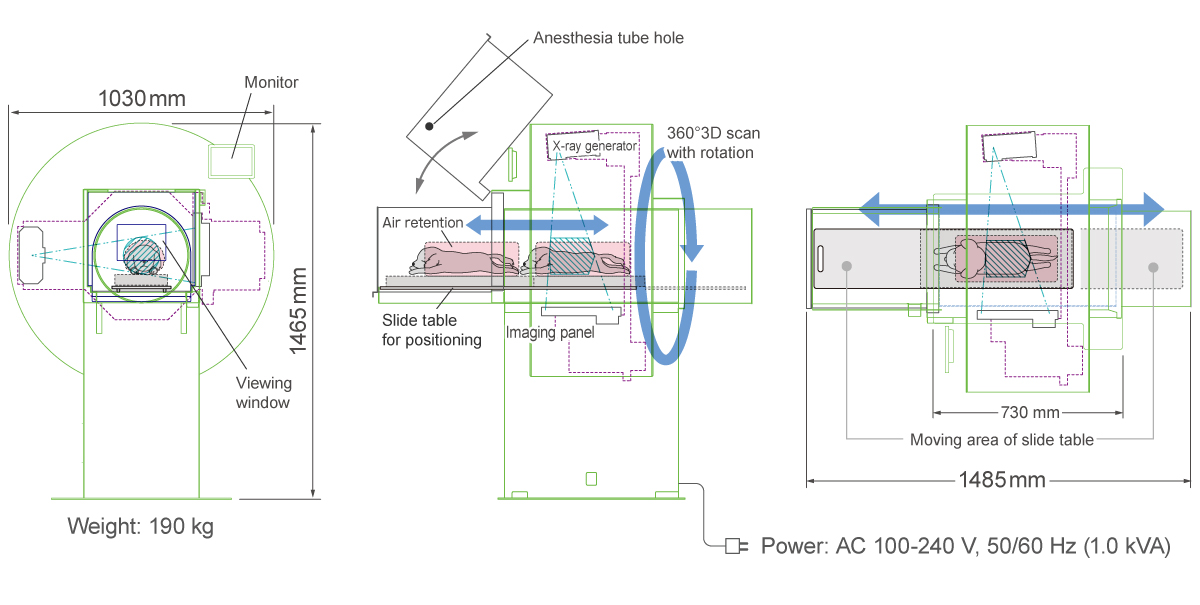

■ Dimensions

■ Specifications

▼ Click for details
Specifications Power AC 100V 50/60Hz
Consumption power 2.0 kVA
X-ray generator Tube voltage 60-90 kV
Tube current 2-10 mA
High voltage generator, DC rectification (Preignition system)
Oil and air cooling
Focal spot 0.5 mm
Total filtration 2.5 mm, Al or higher
Emission switch Dead man's switch
Dimensions W1,030 mm × D1,485 mm × H1,465 mm
Weight 190 kgs
Usage environment Temperature 59~95 ℉ / 15~35 ℃
Humidity 30~70 %
Atomosphere pressure 920~1,060 hPa

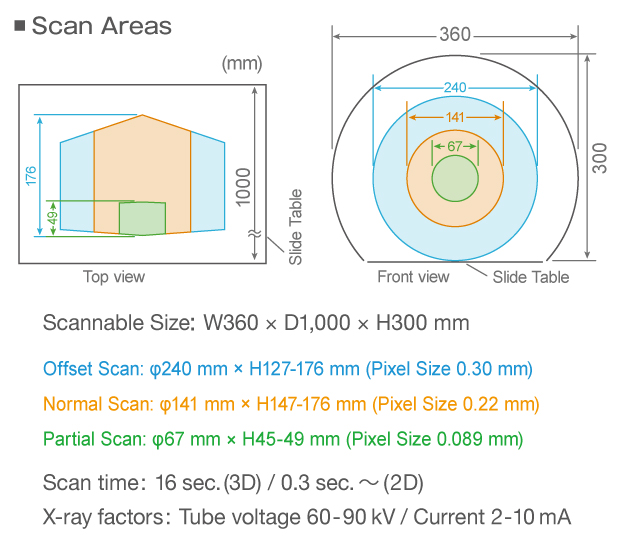

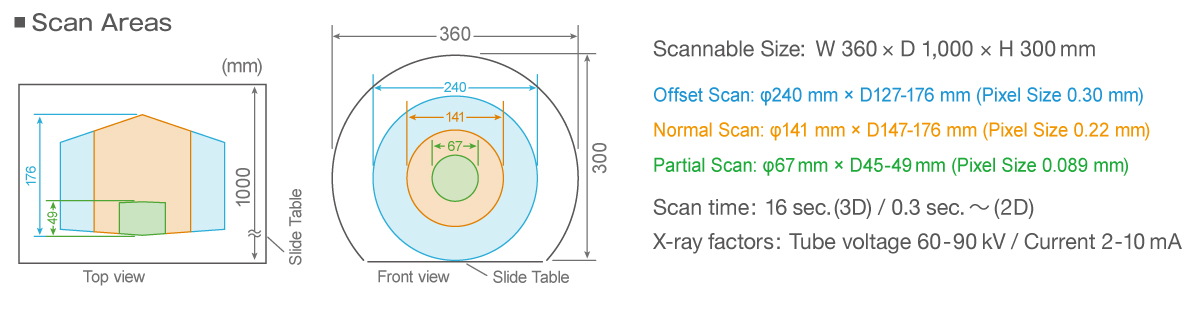

Partial mode F.O.V φ67 mm × H45〜49 mm
Voxel size 0.083 mm
Normal mode F.O.V φ141 mm × H147〜176 mm
Voxel size 0.16 mm
Wide mode F.O.V φ240mm × H127〜176mm
Voxel size 0.24 mm
▲ Close
