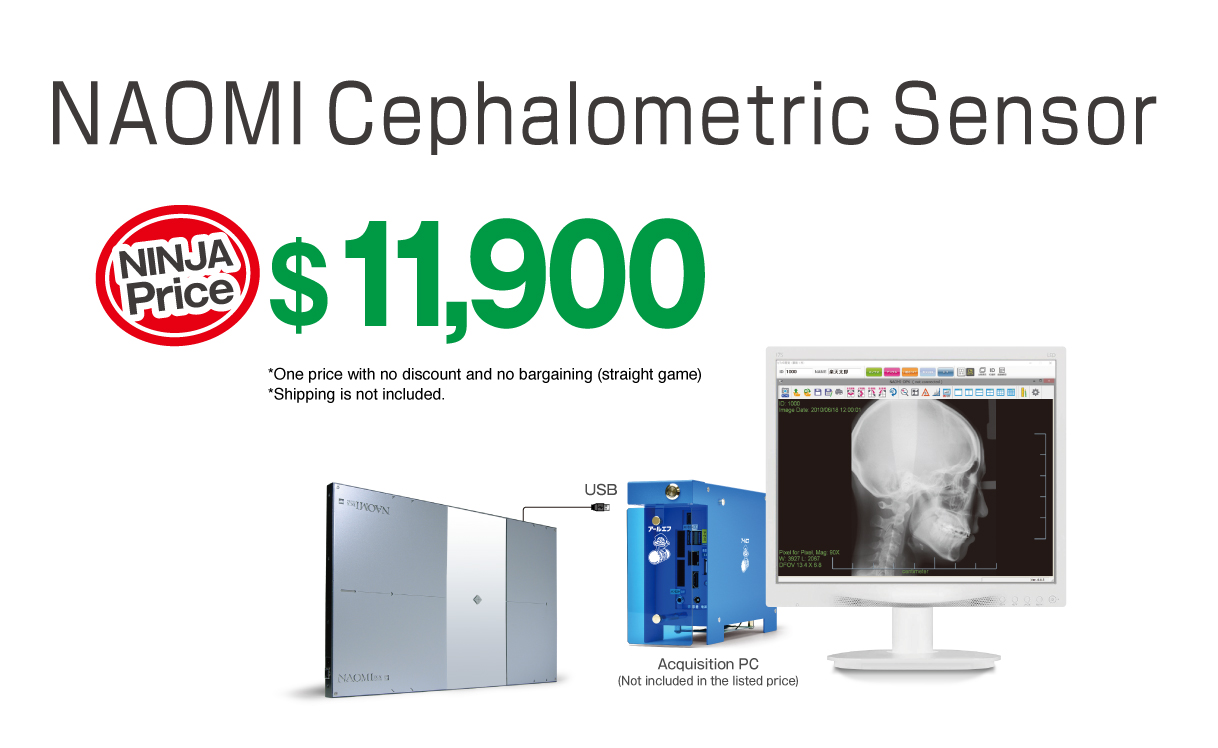

RF | NAOMI Cepharometric Sensor

■ Just by adding the sensor on your existing x-ray machine.

No major modifications or special constructions necessary
(both with cassette/drum types)

Acquisition method	CsI scintillator (with FOP, noise reduction)
Sensor structure	TDI-CCD sensor
Active imaging area	PA position: 220 x 210 mm / LA position: 220 x 254 mm
Pixel size	192 × 192 μm（48 × 48 μm）
Resolutions	PA positoin: 1152 x 1100 pixels
Grayscale	14 bits
Formats	DICOM／BMP／JPEG／PNG／GIF
Interface	USB 2.0
Power	AC 100V / 50-60Hz
Operation system	Windows 7, 8, 8.1, and 10 It does not work properly with some of Windows 10 series. Not compatible with Apple MacOS.
Image acquisition time	Approx. 2 sec. from acquisition to display (upto the computer specifications)
Features with the imaging software	Acquisition, saving, and display / Printing / Sharpness effect / Zoom in & out / Brightness and contrast adjustment / Gamma adjustment / Negative-positive switchover / Rotation / Measurment and notes / Multi-window displays
Availability	Only in Japan

*Product designs, specifications or features may be changed without a prior notice.
